K-66 CUSHION RUBBER

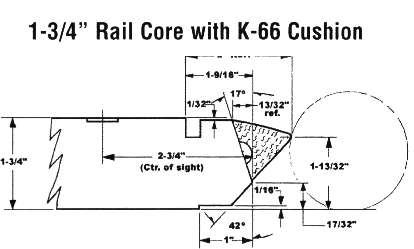

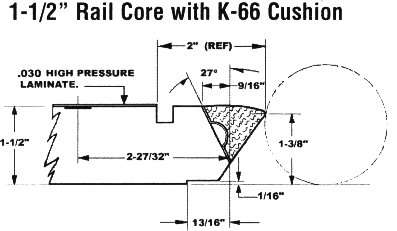

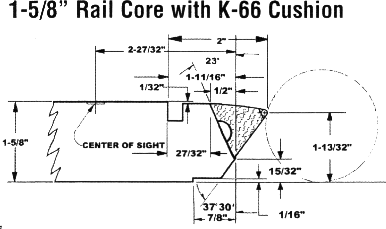

  1. Rail dimensions shown below are optimum for best overall performance in professional play and fit.
  2. % is the height of the cushion nose in relation to the 2 1/4" diameter ball.
  3. Through extensive testing, our conclusion and recommendation is a nose height of 1 13/32" in maximum performance in rebound and consistency.
% INCHES PROFILE DEGREE
61 1-3/8" 22° 30'
62 1-13/32" 23°
63 1-27/64" 23° 15'
64 1-7/16" 23° 30'
